DT500S/600S 双主轴车削中心

DT500S/600S 双主轴车削中心

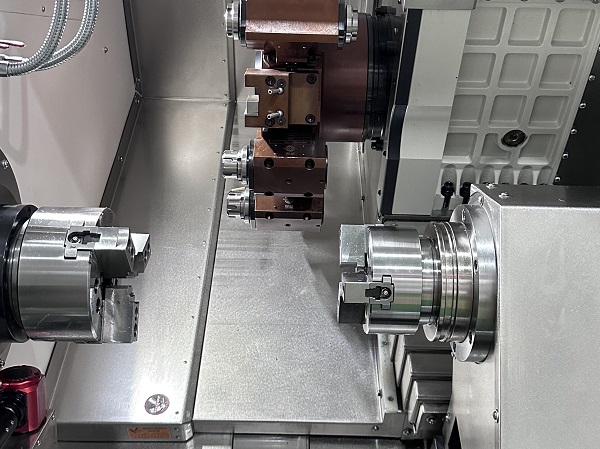

1.Y轴斜交35°动力刀塔,双主轴自动对接车削与Y轴、C轴和动力刀具相结合,强大的“一体化” 加工解决方案,标配100中心高12/15工位BMT45/55刀塔和同步C轴,相对的正副主轴支持同步旋转对接, 减少循环时间。
2.X、Y、Z、Z1轴均采用P及大规格精密重载滚柱线轨支撑,支撑刚性强,导向精度高。
3.主副主轴均采用精密高速大功率电主轴,配NSK精密轴承,可得到高精度、高承载能力、高转速的优化组合。持久耐用。
4.各项均采用C3级THK高精密滚珠丝杆传动,丝杆轴承均采用NSK轴承支撑,丝杆锁紧螺母采用高精度锁紧螺母,配合科学的预拉伸装配工艺,热变形小,传动精度高。
5.机床设置侧排屑和后排屑两种排屑方式,客户可根据自己的现场情况合理选择排屑方向。
6.采用自动集中润滑系统,通过设定是注油时间间隔和注油时长来润滑丝杆、导轨等移动部件,保证机床的正常使用精度和使用寿命。

机床特点

Machine Characteristics
机床特点

1、机身采用计算机CAD辅助设计,结构合理、稳定性强刚性高。
2、整体铸件采用米汉纳铸铁铸造,吸震及减震性能更强、强度更高。且经过二次退火应力消除处理,使机床精度更加稳定耐用。
3、采用整体斜床身铸造结构,使整个床身高性更好、稳定性更强经久耐用。
4、通用型主轴单元,精度高维修方便,为保持整机长久精密提供可能。

加工样品

Processing sample
加工样品加工样品加工样品

适用范围

Range of Application

本机床尤其适用于电子、光电、手机、手表、医疗器械、相机、钓具、电线接头、航空零件等各式精密零件。

技术参数

Specifications
类型Type 项目Item DT500S DT600S 单位Unit
加工范围
Working range
床身最大回转直径 swing over bed Φ500 Φ650 mm
滑板上最大回转直径 Maximum turning diameter on skateboard  Φ200 Φ450 mm
最大加工直径(内撑盘类) Maximum processing diameter(inner support disc type) Φ300 Φ600 mm
最大加工长度 Maximum processing length 450 600 mm
主轴参数
Spindle parameters
正副主轴转速范围 Main and auxiliary spindle speed range 5000/5000 4500/5000 rpm
正副主轴通孔直径 Diameter of the main and auxiliay pull tube through holes Φ55/45 Φ62/55 mm
正副拉管通孔直径 Diameter of the main and auxiliay pull tube through holes Φ45/35 Φ52/45 mm

正副主轴类型 Main and auxiliary spimdle type

A2-5/4 A2-6/5
正副油缸和卡盘 Primary and secondary oil cylinder and chuck 6/5寸 6/5inches 8/6寸 8/6inches
正副轴径跳 Primary and secondary shaft diameter jump ≤0.005 ≤0.005 mm
正副轴端跳 Front and secondary shaft end jump ≤0.005 ≤0.005 mm
正副轴同轴度 Coaxiality of positive and negative shafts ≤0.01 ≤0.01 mm
轴向参数
Axial parameters
X轴极限行程 X-axis limit stroke 360 560 mm
Z轴极限行程 Z-axis limit travel 330 600 mm
Y轴极限行程 Y-axis limit travel ±50 ±50 mm
Z2轴极限行程 Z2-axis limit travel 350 550 mm
X轴快移速度 X-axis fast movement speed 25 25 mm
Z轴快移速度 Z-axis fast movement speed 25 25 mm
Y轴快移速度 Y-axis fast movement speed 18 18 mm
Z2轴快移速度 Z2 axis fast moving speed 25 25 m/min
精度参数 Precision parameter X轴重复定位精度 X-axis repeat positioning accuracy ±0.002 ±0.002 mm
Z轴重复定位精度 Z-axis repeat positioning accuracy ±0.002 ±0.002 mm
Y轴重复定位精度 Y-axis repeat positioning accuracy ±0.002 ±0.002 mm
Z2轴重复定位精度 Z2 axis repeat positioning accuracy ±0.002 ±0.002 mm
最小移动单位 Minimum moving unit 0.001 0.001 mm
电机功率
Motor power
正副主轴电机功率 Main and auxiliary spindle motor power 11/7.5 15/11 Kw
X轴电机功率 X-axis motor power 2.4 3.1 Kw
Z轴电机功率 Z-axis motor power 2.4 3.1 Kw
Y轴电机功率 Y-axis motor power 2.4 2.4 Kw
Z2轴电机功率 Z2 axis motor power 3.1 3.1/3.9 Kw
动力头电机功率 Power head motor power 2.4/3.1 2.4/3.1 Kw
动力刀塔旋转电机功率 Power tower rotating motor power 1.0 1.0 Kw
冷却水泵功率 Cooling water pump power 0.75 0.75 Kw
液压电机功率 Hydraulic motor power 3.0 3.0 Kw
副主轴参数 Secondary spondle parameters 两主轴鼻端间距(A2-5/4) Distance between the nose ends of the two main axes(A2-5/4) 690 980 mm
调头加工单件长度(6寸/5寸)Turnaround processing single piece length(6 inches/5inches) 150 290 mm
最大加工直径(内撑盘类)Maximum processing diameter(inner support disc type) Φ200 Φ350 mm
主轴离心高度 Main axis ground clearance height 1050 1100 mm
主轴中心到门前距离 Cistance from spindle center to front door 450 450 mm
其它
Others
整体床身结构形式 Overall bed structure form 30度 30degrees 30度 30degrees
刀架类型 Knife holder type BMT45/55-15/12工位 BMT45/55-15/12 workstations BMT45/55-15/12工位 BMT45/55-15/12 workstations
刀塔直径 Knife tower diameter 364/330 364/330 mm
车刀座 Turning tool holder 20*20/25 20*20/25 mm
镗刀座 Boring tool holder 25/32 25/32 mm
相邻换刀时间 Adjacent tool change time 0.2 0.2
动力头转速范围 Power head speed range 0-5000 0-5000 rpm
动力头夹持范围 Power head clamping range ER25/32 ER25/32
夹紧方式 clamping system  液压 hydraulic pressure 液压 hydraulic pressure
液压站尺寸 Hydraulic system 710×350×420 710×350×420
外形尺寸(未包括排屑机)Dimensions (excluding chip conveyor) 2450×1700×1900 2810×2060×2200 mm
机床重量(未包括排屑机)Machine weight (excluding chip conveyor) 4050 5500 kg
